Enterprise Solutions RAID Subsystems
iSCSI/IP SAN Storage
2U/3U Rack Mount, 12/16 bay High Performance iSCSI Raid SubSystems, iSCSI
GbE (x) 2 or (x) 4, for SAS and/or SATA drives with up to 80TB Capacity Expansion.
|

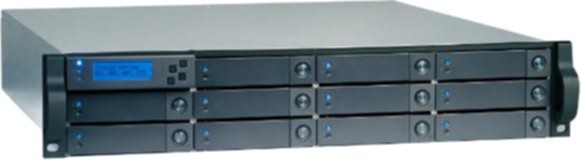

2U 12-bay or 3U 16-bay 19" Rack
Single Channel 110MB/s, dual 220MB/s and Quad 440MB/s
2/4 GbE full iSCSI offload with load-balancing & fail-over
One logic volume shared by as many as 16 hosts
Host access control
Snapshot-on-the-box w/o relying on host software
RAID 6, 60 ready
Configurable N-way mirror for high data protection
On-line volume migration with no system down-time
HDD S.M.A.R.T. enabled
Discovery tool provided
Global/dedicated cache configurable by volume |
|
| |
|
|
| Model No. |
SL5650-4S-L4D |
SL7650-4S-L4D |
| CPU |
Intel 80331 64bit 500Mhz RISC processor |
| RAM |
DDR 333 512MB |
| Host Interface |
Dual Gigabit Ethernet |
| Driver Interface |
SATA I / SATA II |
| Transfer Rate |
Up to 200Mb/s |
| Hard Disk |
4; Extends to 8 HDDs |
| RAID Level |
0,1,0+1,3,5,6,10,30,50,60,JBOD |
| Support Hot-Swap |
Yes |
| Largest Capacity |
Supports Large Capacity over 2TB |
| Fan |
1x 40W Power Fan + 1x 8cm System Fan |
1x 40W Power Fan + 2x 4cm System Fan |
| Power Supply |
Input:100V~240V Output:50~60Hz 200W |
| LED Display |
Yes |
| System Inspection |
Yes |
| Buzzer On/Off |
Yes |
| Management GUI |
WebGUI & RS-232 COMx Port |
| System Requirements |
Windows 2000/2003 & Mac 10 & Linux 2.4 or above |
| Safety Guarantee |
CE/FCC |
| Dimension (mm) |
177W x 270D x 274H |
430W x 420D x 43H |
| Weight (kg) |
7.4 |
7 |
| Acessories |
CD / User's Manual / AC Power Cable / Accessories bag / RS232 Cable |
|
Superior RAID Subsystems with Advance Design & Engineering |
SCSI/Fibre-to-SATA-II RAID6 Data Storage Subsystem
64bit LBA addressing to offer >2TB in single LUN accessible by OS

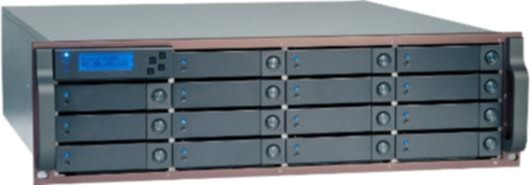

SyneRAID6™ SATA-II Series:
100% hardware SCSI/Fibre-to-SATA-II RAID subsystem
RAID 0,1,(0+1),3,5, RAID6, NRAID, Multiple Array and JBOD
U4WSCSI/320MBs w/Dual Channel Clustering
Fibre w/Dual 4Gb/400MBs ports Copper HSSDC2 or Optical LC
8/12/16 x SATA-II/300MBs w/NCQ drives up to 1TB Tested
19" 2U/3U Rackmount Chassis w/Backplane
OS and hardware Independant tested for: All versions of MS-Windows, Novell, Solaris, Linux, FreeBSD, Unix
Intel IOP80321 Processor 64bit/400MHz up to 1GB ECC Cache
Remote management through any browser using the GUI RAID Management Software, of via direct Ethernet connection and over local LAN or Internet, as well as, SNMP notification
Option:
Battery backup for cache and controller protections
|
 |
|
SyneRAID6™ SATA-II Series |
|
Stardon-6600-5S-U4 (U4SCSI/320MBs-SATA-II)
U3WSCSI/160MBs-to-UDMA/100/133 Interface
Firewire 1394b+USB2.0-to-UDMA/100/133 Interface
Hardware RAID 0,1,3 and 5 with Hot-Spare and Auto-Rebuild
5 x UDMA/100/133 drives up to 300GB tested
OS independent tested for: All versions of MS-Windows, Novell, Solaris, Linux, FreeBSD, Unix
Toshiba 200MHz processor
GUI RAID & Remote Management Software ovver IP for Windows |
Call for all the Synetic models.
|
